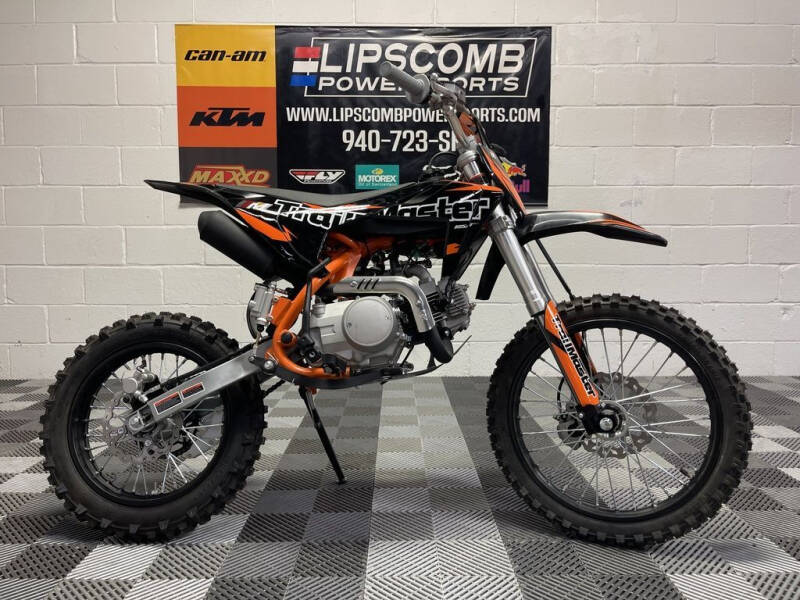

2022 TrailMaster TM24 - 125

General Information • Engine Type ZM125cc, Single Cylinder, 4-Stroke, Air Cooled • Displacement 124 ml • Max Power 8.3hp • Max Torque 9.0(1±10%)/5000(1±5%) N.m/r/min • Compression Ratio 9.6:1 • Shift Type 4 Gear Manual Shift • Start Type Kick Start • Carburetor PZ26 Jingke Carburetor • Drive Train #428,14/41T • Packing Size 54.5" * 14.7" * 29.7" • N.W/KG 145.5 LBS • G.N/KG 172 LBS Size Data • L x W x H 64.1" * 29.5" * 41.3" • Wheel Base 42.3" • Tires FT: 70/100-17 - RR: 90/100-14 • Seat Height 32.7" • Ground Clearance 13.6 • Fuel Capacity 3.5 L • Max Range:=10.5mile • Engine Oil #:SJ5W?30Frame/Suspension/Brake/Wheel System • Frame Cradle Type Steel Tube • Front Fork Inverted 45*48-700mm Forks, Non-Adjustable • Rear Shock ?10*275mm , Non-Adj • Swing-Arm Steel Tube • Handle Bar Aluminium Crossbar ,L=720mm; Dia=22mm • Wheels Steel 1.6 x 17" / 1.85 x 14" Rims, Cast Hubs • Front Brake Hydraulic Single Piston Caliper, 210mm Disc • Rear Brake Hydraulic Single Piston Caliper, 190mm Disc • Exhaust Stainless Steel Header Pipe, Hexagon Aluminum Silencer • Packing Size 54.5"X14.8"X29.7" • N.W/LBS 134.5 LBS • G.W/LBS 161 LBS
